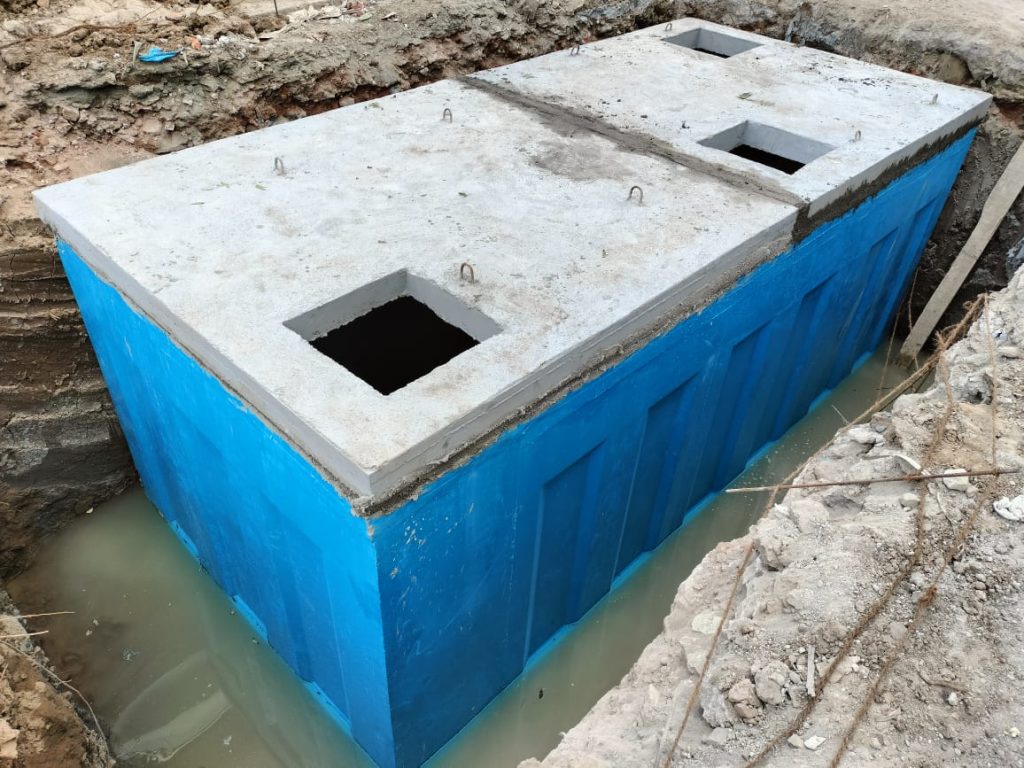

Precast RCC Bio Septic Tank

Precast RCC Bio Septic Tank.
Our bio septic tank consists of three chambers. First part the raw sewage enter into sedimentation chamber, Here we have noodle mats for rough in sidewall of our tank, this rough surface will enhance as home for inoculum bacteria to multiply, which will be started digesting in anaerobic conditions, then it passes to next bio processing chamber,where we use PP flower media (virgin plastics bio balls) which acts as home for enzymes and they multiply by taking harmful microorganisms as food and digest ge needs with exceptional durability and performance. Our FRP water tanks provide a reliable and long-lasting solution for residential, commercial, industrial, and agricultural applications. Built to resist corrosion and harsh environmental conditions, our tanks offer a safe and eco-friendly way to store water. Learn more about the advantages, features, and applications of FRP water tanks below.
The bio-enzyme which is imported from Australia is applicable to all septic tanks, grease traps, drainage trenches, and drain lines from kitchen sinks, bathrooms, laundry and sewers. “Be it houseboats, buses, trains, fish forms, wastewater treatment plant, paper industry, distilleries, hospital or dairies, this technology offers a perfect solution. It consists of 20 different types of enzymes and bacteria which can develop in both aerobic and anaerobic conditions and this will start to reduce the BOD and COD of the sewage water and the water will loses its hardness during this process and neutralizes the PH between 6.6 to 7.5 so the water becomes partially clear.
This water still have some floating matters which is settled in the final settling chamber and this can be directly leave it in to gardening or in to a soak pit. The soak pit needs to have the following materials before the filtered water goes to the ground water recharging. Activated carbon, broken brick, pebbles, Sand. These acts as filter media. The settled sludge will be self-digestive if want to clear we can take once in 48 months.

ADVANTAGES OF OUR TREATMENT
- Odor will be reduced within 1 week.
- Reduce all suspended solids within 1 month and Converts into clear water within 2 months.
- The treated water can be discharged through overflow pipes to trees, rainwater harvesting lines, etc. because the treated water will be like rain water.
ADVANTAGES OF PRECAST RCC TANK
- We do our precast tank in M40 GRADE with 12 x 12 mm rod by 150 mm reinforcement.
- Our Rcc mixture is waterproof mixed.
- PU paints are coated inside and outside o tan for extended life of tank up to 20 years.
- Overnight installation
- Provided three manholes of 500 mm for easy and safety service, if required.
Water Storage Tank
S.NO | Water Storage TANK |
|
| MOC Reinforcement 13.5 KL Tank Size Manhole WALL Thickness & BASE Erection & testing Top slab INLET & OUTLET | RCC _M40 GRADE 12 mm Rods @ 6 inch ,Bottom mat Crank type 3.35 x 2.6 x 2.3 – Length Width Height 500 mm x 3 nos 150 mm Done at Site 150 mm with 3 manhole 4 INCH |
PRECAST RCC M40 GRADE BIOSEPTIC TANK DIMENSION | |||
S.NO | CAPACITY | SIZE IN METER | OVERALL THICKNESS |
1 | 3 KL | 2.1 × 1.65 × 1.5 M DEPTH | 100 MM |
2 | 5 KL | 2.4 × 2 × 1.9 M DEPTH | 115 MM |
3 | 6 KL | 2.4 × 2.1 × 1.9 M DEPTH | 125 MM |
4 | 8 KL | 2.6 × 2.1 × 2.3 M DEPTH | 150 MM |
5 | 10 KL | 3.3 × 2.4 × 1.9 M DEPTH | 150 MM |
6 | 13.5 KL | 3.6 × 2.6 × 2.3 M DEPTH | 150 MM |
7 | 15 KL | 4.85 × 2.6 × 2.3 M DEPTH | 150 MM |
8 | 20 KL | 4.85 × 2.6 × 2.3 M DEPTH | 150 MM |
9 | 25 KL | 6.05 × 2.6 × 2.3 M DEPTH | 150 MM |
10 | 30 KL | 6.9 × 2.6 × 2.3 M DEPTH | 150 MM |
PAYMENT TERMS & OTHER CONDITIONS
- 50% Amount – Along with Confirmed Purchase Order.
- 40% Amount – Against Proforma ,Dispatch
- 10% Amount – After installation
- GST – + 18 %
- Price – Ex-Works/Go down, Chennai.
- Delivery – 15 days from the date of confirmed P.O. with advance
- Guarantee – 25 Years for precast tank
- Performance warranty – The system will be guaranteed for a period of 12months from
The date of dispatch
